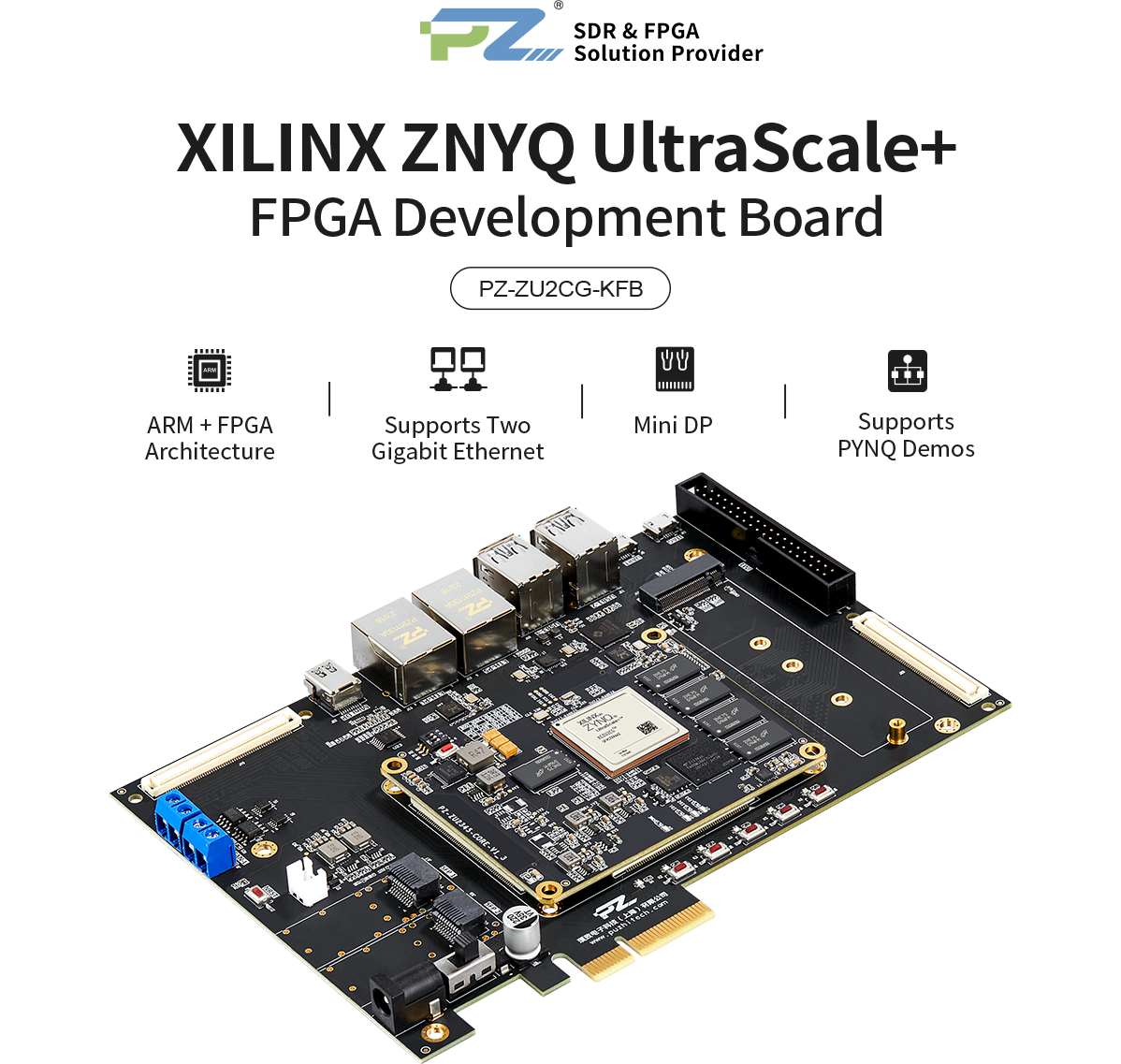

Puzhi FPGA ZYNQ UltraScale+ ZU2CG Development Board
PZ-ZU2CG-KFB
- ARM+FPGA architecture，2 x Cortex-A53，main frequency 1.2Ghz
- PS Side 4GB、PL Side 1GB DDR4，8GB EMMC，256Mb QSPIFLASH
- Core board 120P connector connection，size 83.8*64.8mm
- Reserved ports UART、RS485、CAN、Gigabit Ethernet、SSD，etc
- Support SDK development，support PYNQ，rich routines，help product development

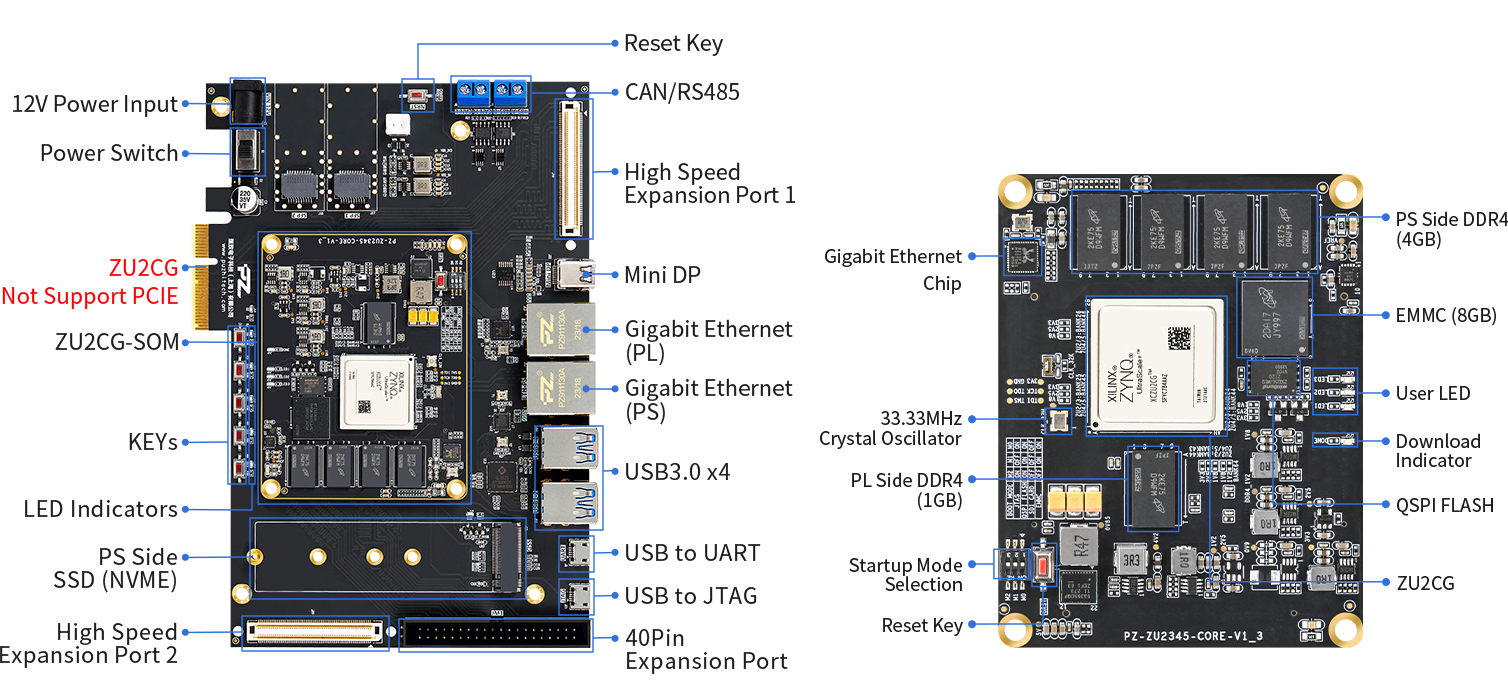

Interface Function Display
Product Parameters
Core Board Main Parameters
FPGA Dev. Board | PZ-ZU2CG-KFB |
FPGA Chip | XCZU2CG-2SFVC784I |
Processor Core | 2 x Cortex-A53-1.2Ghz 2 x Cortex-R5-500Mhz |
Speed Grade | 2 |
Chip Level | Industrial Grade（-40°C~+85°C） |
Logic Cells | 103K |
Logic Cells | 94000 |
Flip-Flops | 47000 |
DSP Slices | 240 |
BLOCK RAM | 5.3Mb |
DDR4 | PS Side 4GB, PL Side 1GB |
QSPI FLASH | 256Mb, to Store Startup Files and User Files |
EMMC | 8GB |
Start-up Mode | JTAG/QSPI/SD/EMMC, Default SD startup |
User LED | 3 |
Reset Key | 1 |
PS Side GTR | 4 Pairs of TX/RX |
PS Side MIO | 38 |
PL Side IO | Total 192 single-ended: 96 IOs, 1.2V/1.8V Adjustable, Default 1.8V 96 IOs, 1.8V/2.5V/3.3V Adjustable, Default 3.3V |
Crystal Oscillator | 33.3333MHz Single-ended Crystal For the PS 200MHz Differential Crystal for the PL |
Core Board Form Factors | 3.30 inch x 2.55 inch (83.8mm x 64.8mm ) |
Interfaces and Function
JTAG Downloader | 1 |
UART/RS485/CAN | 1/1/1 |
SD Card Slot Interface | 1 |
SSD Memory Interface | 1 (PS Side) |
Gigabit Ethernet | PS Side 1 / PL Side 1 |
Mini DP Output | 1 |
LED | 5 |
KEY | 5 |
RTC | 1 |
Voltage / Current | 12V/3A |
Board Form Factors | 7.09 inch x 4.80 inch (180mm x 122mm ) |
Technology | Black Matte. Immersion Gold Process |
2 x 120P high-speed Expansion Ports | Total 80 Single-ended/40 Differential pairs |
40Pin Expansion Port | 32 Single-ended/16 Differential pairs Reserve one 40-pin 0.1 inch Expansion Port，to Connect Puzhi Modules (AD/DA, Camera, LCD)，Expansion Port including 5V power supply，3.3V power supply, 6 Ground, 32 IOs |

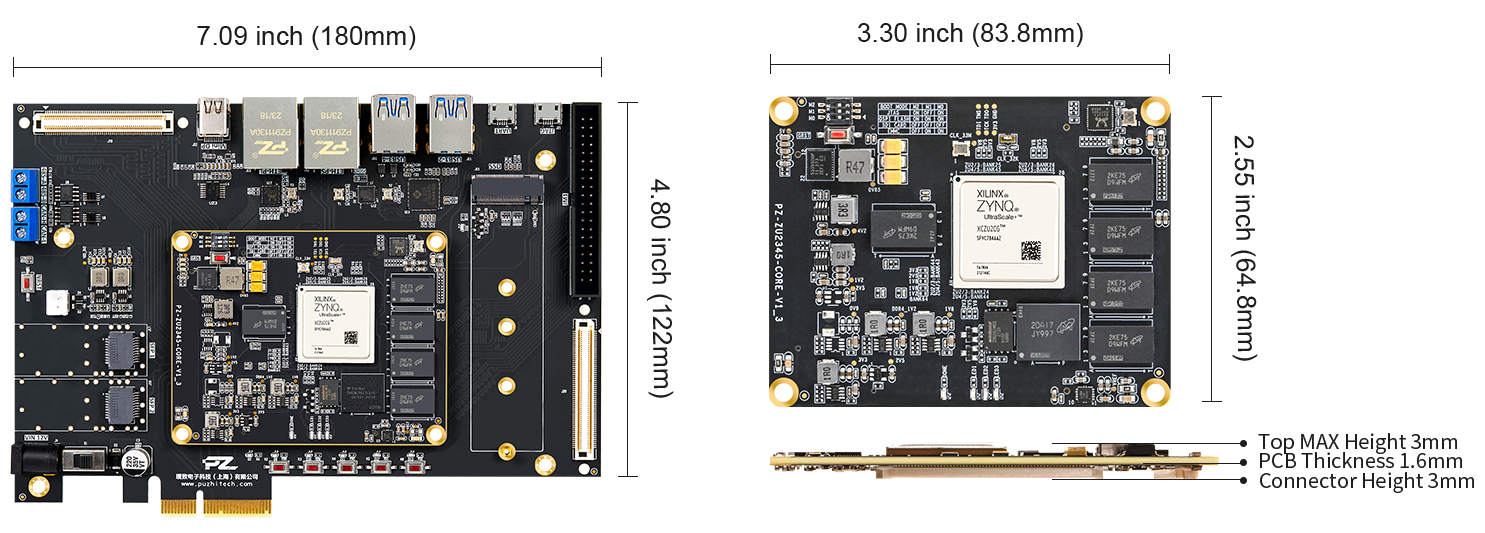

Product Dimensions
Product Packages

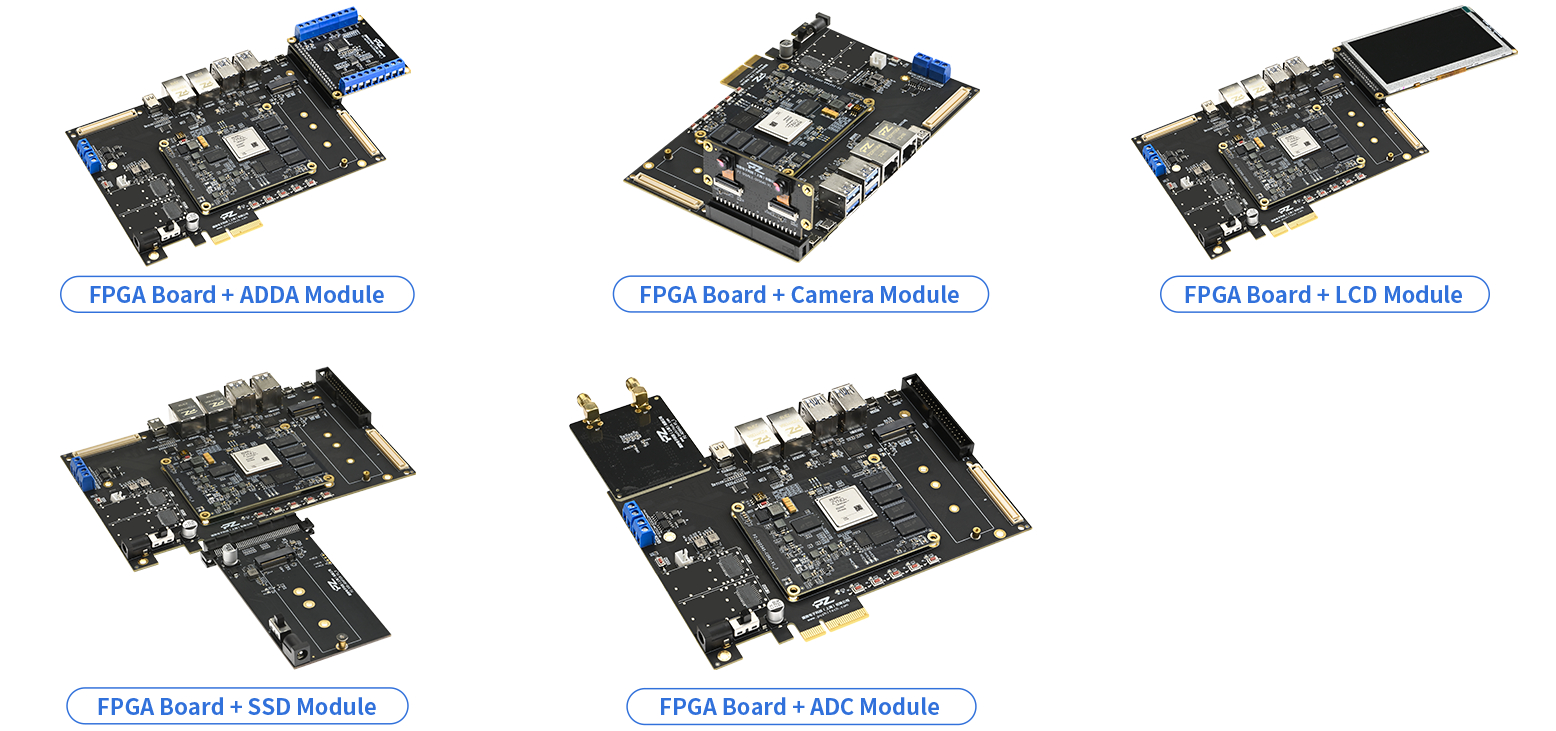

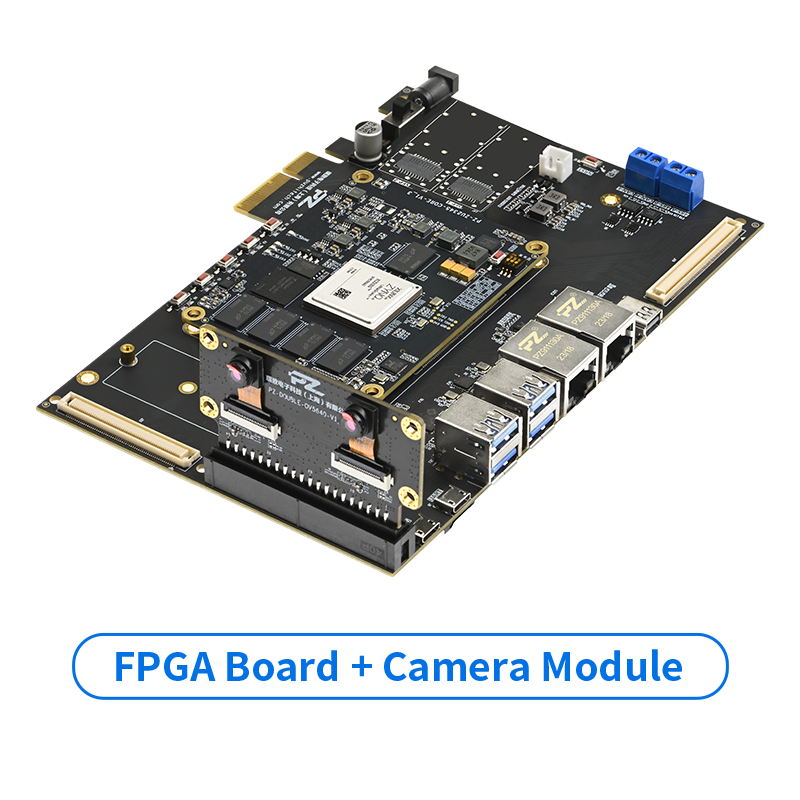

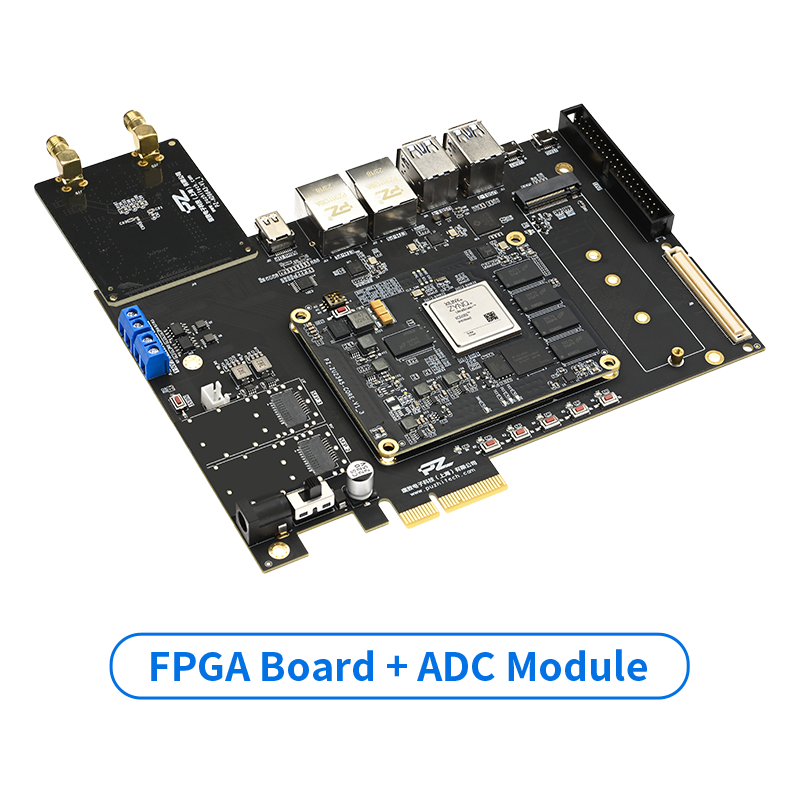

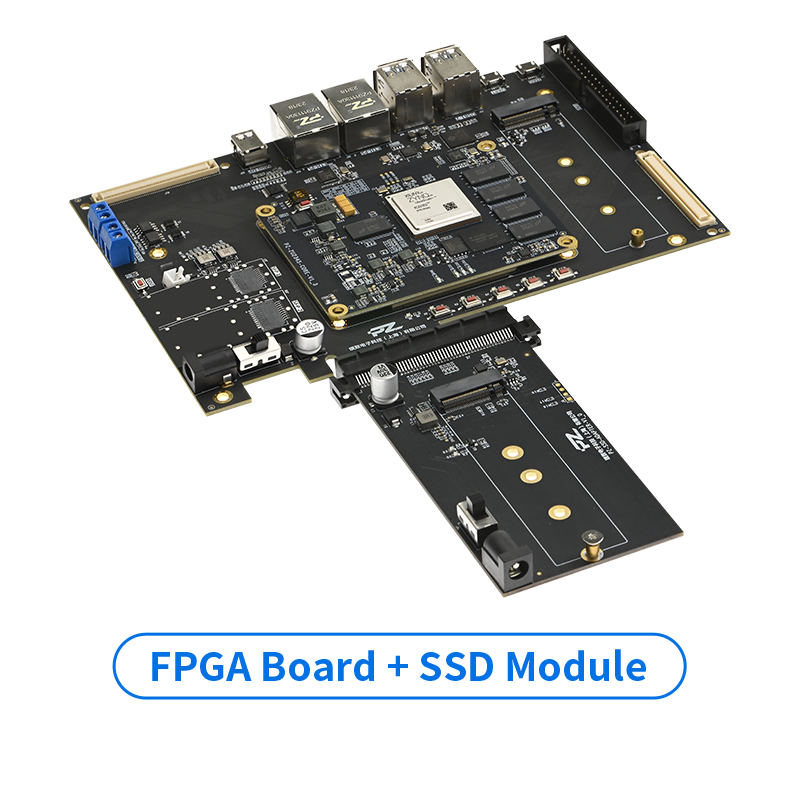

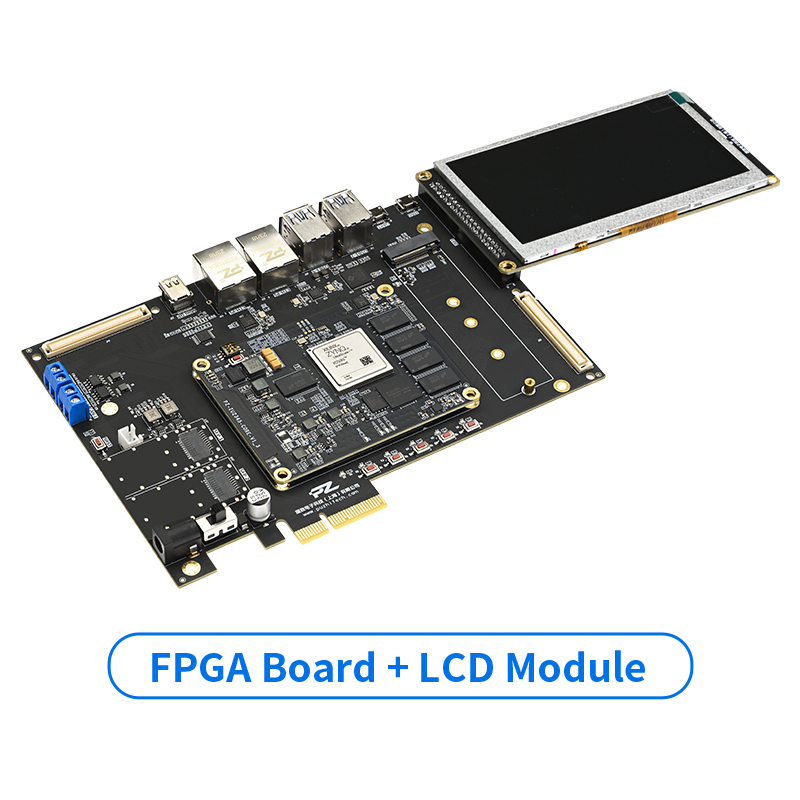

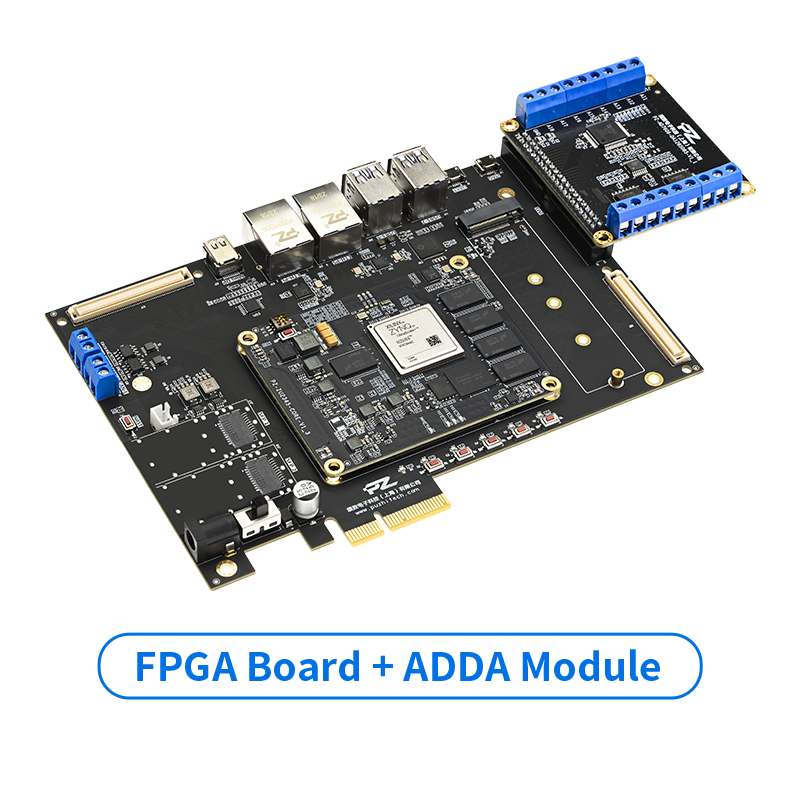

Other Subcard Display
Supporting Display
Demos Come with the Board
Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox
Demos Constantly Being Updated... ...
- 1
FPGA Logic Demos
- 01.
Vivado Installation
- 02.
FLASH Curing
- 03.
LED Flashing
- 04.
LED PWM Control
- 05.
Key Debouncing Demos
- 06.
FPGA on-chip RAM Read and Write
- 07.
FPGA on-chip ROM Read and Write
- 08.
FPGA on-chip PLL Configuration
- 09.
FPGA on-chip FIFO Read and Write
- 10.
FPGA side DDR4 Control Read and Write
- 11.
I2C Read and Write E2PROM
- 12.
LCD Picture Display
- 13.
AD-AD7606 8-channel Acquisition Voltage
- 14.
DA 8-channel Output Sine Wave, Triangle Wave Square Wave
- 15.
Gigabit UDP Based on RTL8211F
- 16.
SFP Bit Error Rate Test
- 17.
High Speed ADC-AD9643 Acquisition (250MSPS)
- 01.
- 2
SDK Demos
- 01.
UART Serial Port Communication
- 02.
TTC Timer Interrupt Experiment
- 03.
PS Side EMIO Control LED Flashing
- 04.
EMIO Key Control LED
- 05.
DP Interface Display Demos
- 06.
Custom IP
- 07.
RS485 Communication
- 08.
CAN Bus Communication
- 09.
I2C Communication
- 10.
Gigabit Ethernet (NET0 MIO) Application
- 11.
Gigabit Ethernet UDP Remote Upgrade
- 12.
PS Side DDR4 Read and Write
- 13.
PS Side EMMC Read and Write
- 14.
AXI-DMA Read and Write
- 15.
SD Card Read and Write
- 16.
ADC Acquisition Gigabit Ethernet Transmission
- 17.
LCD Image Display
- 18.
AD7606 and DA128S085 Synthesised Demos
- 19.
DP Display of Binocular Camera Images
- 20.
SD Card Picture DP Output Display
- 21.
PL-side Gigabit Ethernet Communication Demos
- 01.
- 3
PetaLinux Parts
- 01.
Introduction to Virtual Machine and Ubuntu System
- 02.
Petalinux Tool Installation
- 03.
SD Card to Start the Linux System
- 04.
GPIO Control LED
- 05.
QSPI Curing and Startup
- 06.
EMMC Curing and Booting
- 07.
NVME SSD Read/Write
- 08.
Linux Common Commands
- 01.
- 4
Supports PYNQ

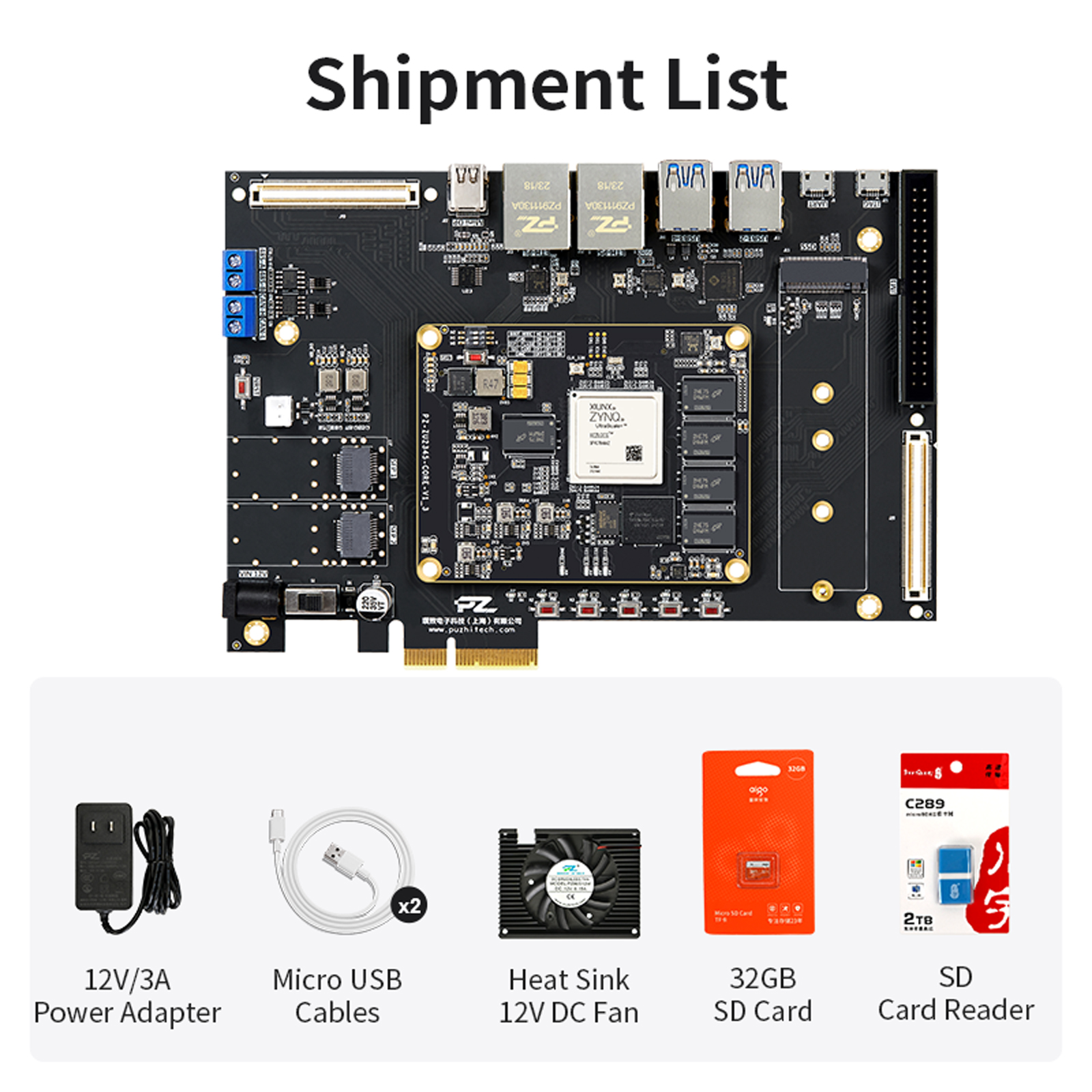

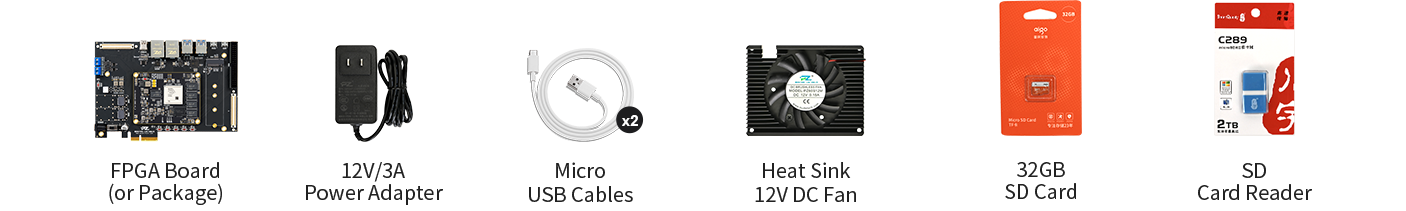

Standard Delivery List
